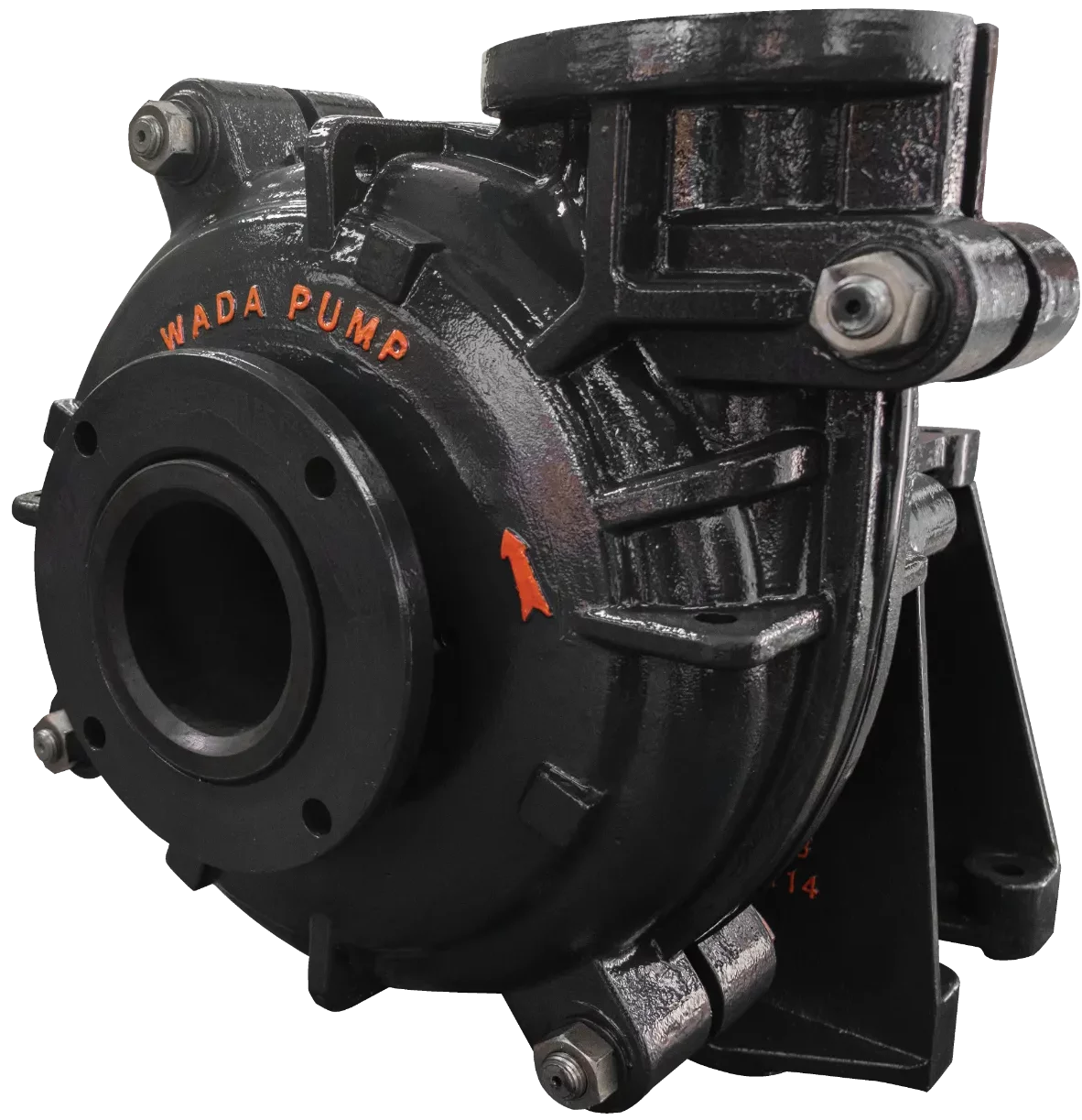

The WAH Series has been designed for corrosive and abrasive slurries.
Bearing Assembly
A short overhang on the shaft assists with shaft deflection as well as vibration. Dimensionally interchangeable to suit heavy-duty bearing assemblies.
Casing Liners
Ease of maintenance design allows interchangeability with high-chrome, elastomer and various other material options.
Impeller
Various impeller designs to suit any application. Impeller adjustment via bearing assembly. Expulsion vanes on the impeller shroud minimize the recirculation and reduce pressure in the stuffing box. Available in various materials to suit any application.
Natural Rubber
Fine erosive and abrasive products can be pumped using natural rubber. Max tip speed - 27,48m/s Max particle size - 10mm Natural Rubber can handle a pH range of 2-14 at 23 degrees
27% Chrome
Mild corrosive slurries can be pumped using 27 %Chrome.
Max tip speed – 34.5m/s
Max particle size is limited by the impeller passage.
Superb wear resistance to erosive/ abrasive products with particle sizes greater than 0.1 in diameter provided by 27% chrome.
Products consisting of Nitric (HN03J and Sulphuric(H2S04) acids within a PH range of 5 to 12 can be pumped successfully using 27% Chrome.
Application and Commodities
General Processing Mill Circuit Coal Processing Power Industry Wet Crushers SAG Mil Discharge Ni Acid Slurry Coarse Sand Coarse Tailings Phosphate Matrix Minerals Concentrate Oil Sands Mineral Sands Pulp and Paper
